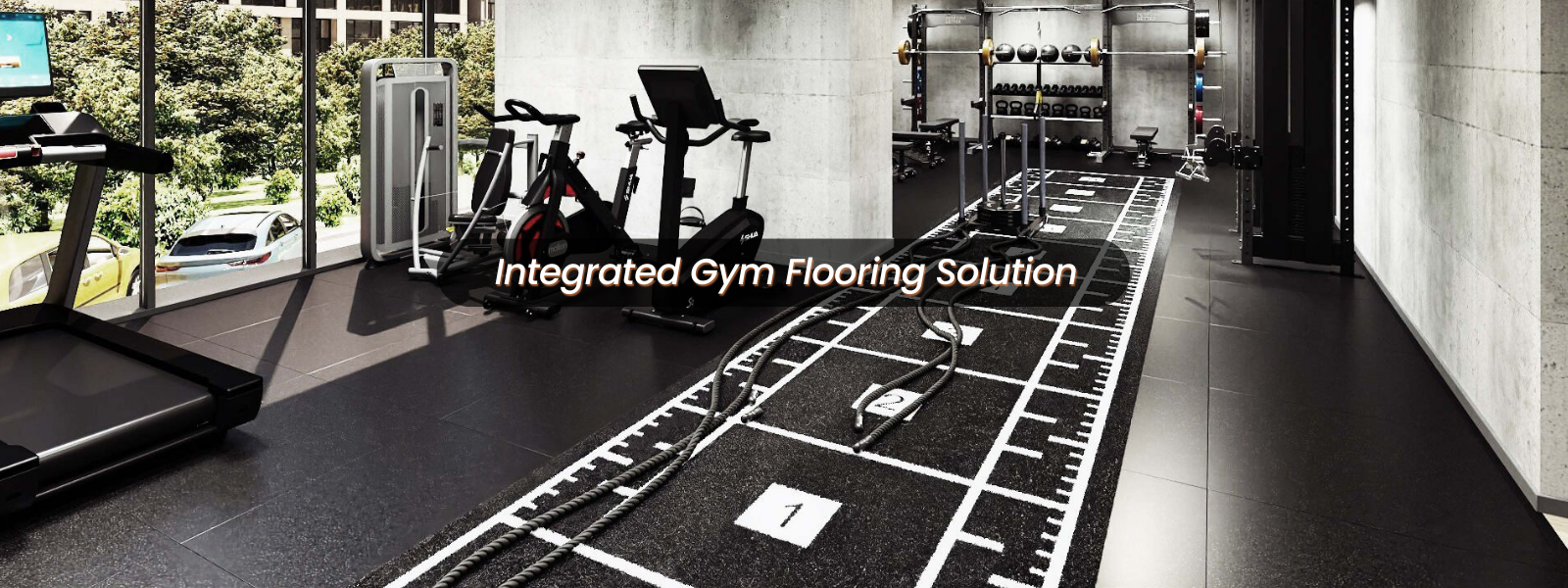

Integrated Gym Flooring Solution
🏋️
Rubber Flooring for Strength Zones
Parameter ———— Specification
🌱 Material——Eco-friendly SBR/EPDM Rubber Granules
📏Thickness——15mm–50mm (Customizable)
🛡️ Hardness——Shore A 50–70
🔥 Fire Rating——Class B1 (GB 8624 / EN 13501)
⚖️ Load Capacity——≥500 N/m²
🔧 Installation——Click-lock Tiles / Roll Systems
📜 Warranty——Up to 10 years (Commercial)
🏃
Artificial Turf for Training & Functional Zones
Parameter ———— Specification
🌿Fiber Material——High-strength UV-stabilized PE
📐Pile Height——10mm–15mm (Wear-resistant)
🧱Density——16,800–21,000 stitches/m²
🛡️Shock Absorption——8mm EVA Integrated Backing
⚠️Slip Resistance——Dry: >0.8 (DIN 18032 Compliant)
🎯Custom Markings——Sled Track / Agility Ladder
💧Drainage——≥30 L/min/m² (Perforated Backing)
❄️
Sled Track Specific Turf
Parameter ———— Specification
⚙️Wear Layer——Dual-layer PE Weave + PU Coating
⚡Glide Friction——0.3–0.5 (Optimized Resistance)
🌡️Temp Resistance——-30 °C to 70 °C (Anti-cracking)
🧰Roll Size——3m × 25m (Reinforced Edges)
🔨Installation——Seamless Glue-down + Edge Anchoring
✅
Integrated Solution Advantages
Advantage———— Description
🛡️Safety First——Rubber shock absorption + turf slip resistance
🎨Visual Zoning——Color & texture differentiation for training efficiency
⏱️Fast Installation——Modular systems, ready in 72 hours
🧼Easy Maintenance——Stain-resistant, clean with water/neutral detergent
🌍Eco-Certified——SGS, LABOSPORT, REACH compliant reports
📦
Service Process
Step————Description
🗺️Needs Analysis——Consultation & site assessment
🖥️3D Design & Simulation——Custom layout & visualization
📦Material Sampling——Physical sample approval
👷Professional Installation——Certified team & equipment
📞After-sales Support——Warranty & maintenance guidance
🔗
Request a Custom Quote
Please provide for detailed proposal:
📐 Floor plan / Site dimensions
🎯 Zoning and functional requirements
⚡ Expected training intensity & user volume

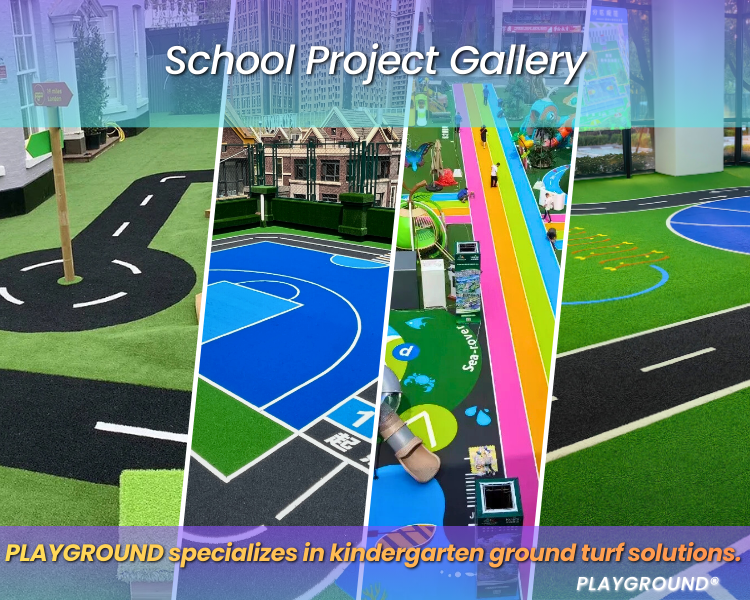

Kindergarten Multifunctional Safety Turf System Solution

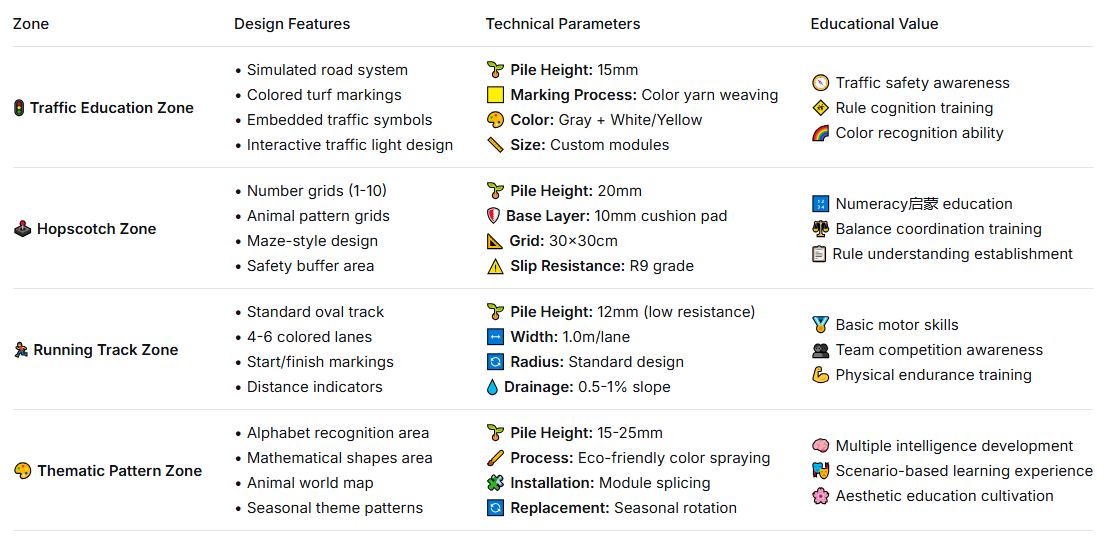

Core Functional Zone Design
Technical Parameter Summary

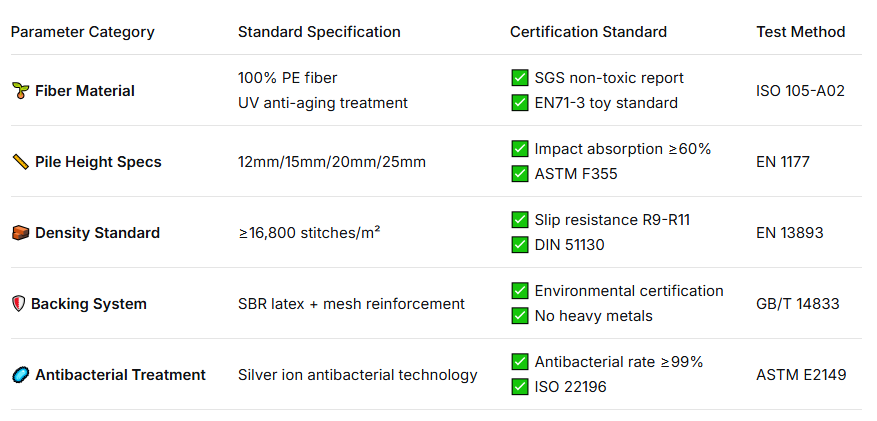

🌿 Basic Turf Parameters

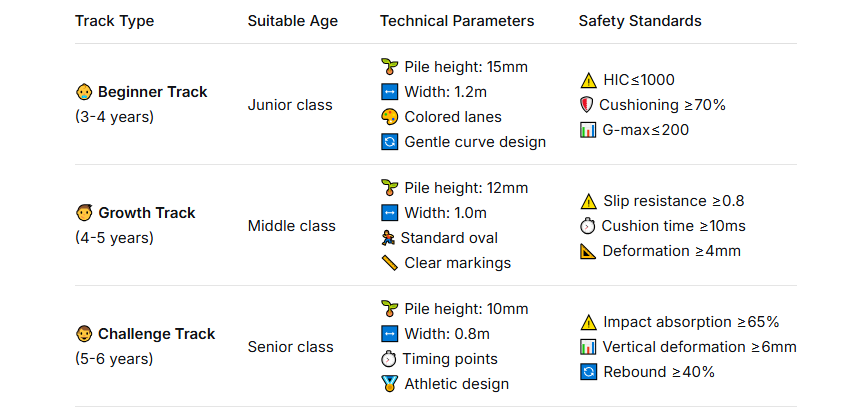

🏆 Specialized Track Parameters

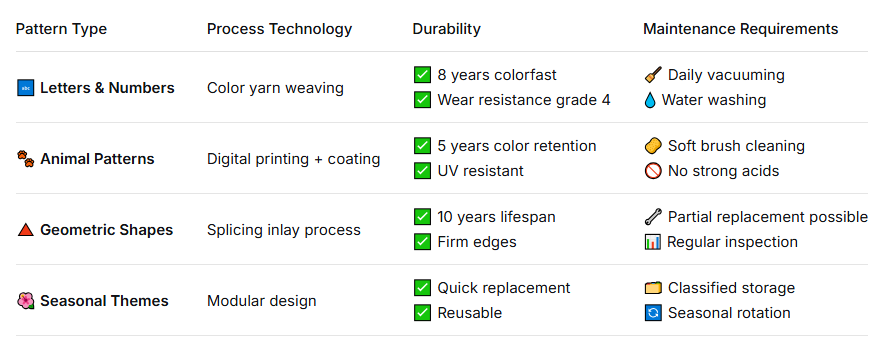

🎨 Pattern Customization Parameters

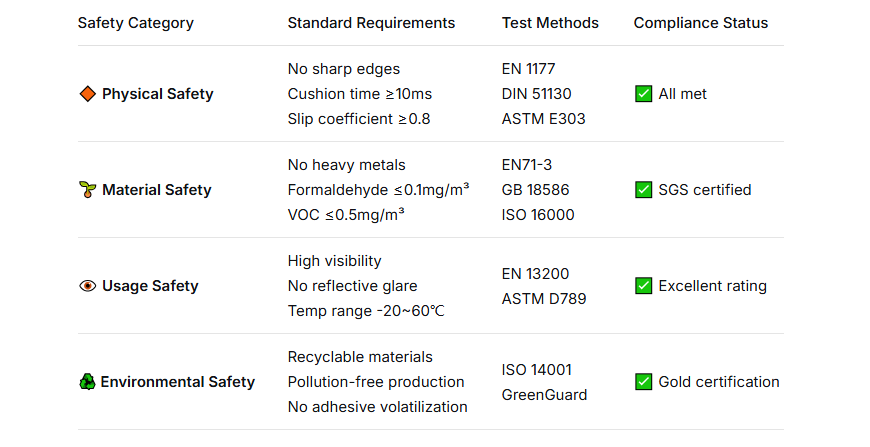

🛡️ Safety Performance Indicators
📦 Installation & Service Standards

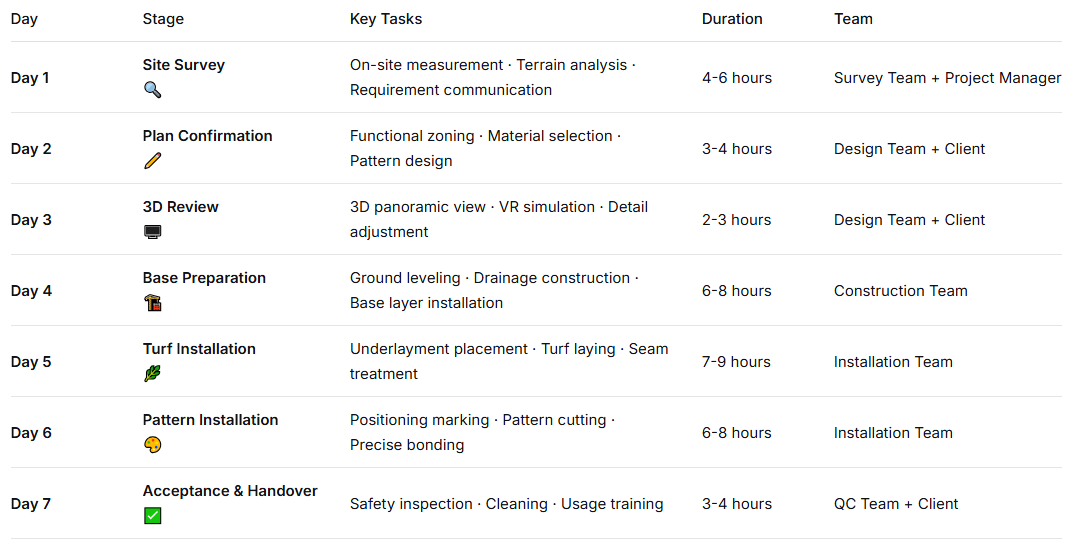

🔧 Installation Process
📞 Service Commitment

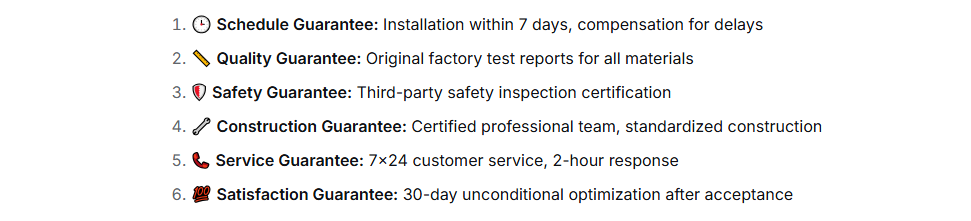

✅ 6 Major Guarantee Commitments
